44 Keys Industrial Membrane Keyboard IP65 Dynamic With Ruggedized Touchpad

  • 1
  • 2

Brand Name : IKB-MKB

Model Number : K-TEK-D125TP-KP-FN-SW

Certification : ROHS,CE,FECC

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : silicone

Backlight : White

Keys : 89 keys (including 2 mouse buttons)

Key travel : 1.50mm±0.10mm

Protection Level : IP65 dynamic (front panel)

Interface : Dual PS2

Size : 315.0mm x 108.0mm (L x W)

Key word : Silicone rugged keyboard, rugged keyboard with touchpad, military keyboard

Contact Now


44 Keys Industrial Membrane Keyboard With Ruggedized Touchpad


Industrial Membrane Keyboard Model NO: K-TEK-D125TP-KP-FN-SW

DESCRIPTION FOR INDUSTRIAL MEMBRANE KEYBOARD : 44 keys compact format IP65 dynamic rated membrane industrial keyboard integrated with combined alphabets to number keys and function keys for full keyboard functionalities, with function keys (F1,F2......F9, F10) and ruggedized tough touchpad for fast and accurate cursor position, micro switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, surface mounted extremely flush with anti-microbial, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, top panel mounted solution with threaded bolts.

DIMENSION: 125.0mm x 225.0mm (top panel)

MECHANICAL DATA
Number of keys 44 keys (including 2 mouse buttons)
Key switch technology Micro switch technology
Actuation force 2.0N±0.2N (press point)
Key travel 0.45mm ± 0.05mm
Key switch lifetime 1 mil. operations
Mounting type Top panel mounting.
Colors white
G.W. 0.90KGs
Key dimensions (print area) 12.0mm x 12.0mm
Touch pad sealed and ruggedized tough touchpad
Touchpad cover Composite
Method capacitive
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Output (self-detectable depending on cable) PS2 or USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5VDC ± 0.25V
Current rating (active mode) < 10 mA
ELECTRICAL DATA
Supply voltage DC +5V±5%
Current rating 50mA
EMC standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 100%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS, CE, FCC
Protection level IP65 dynamic
Key lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

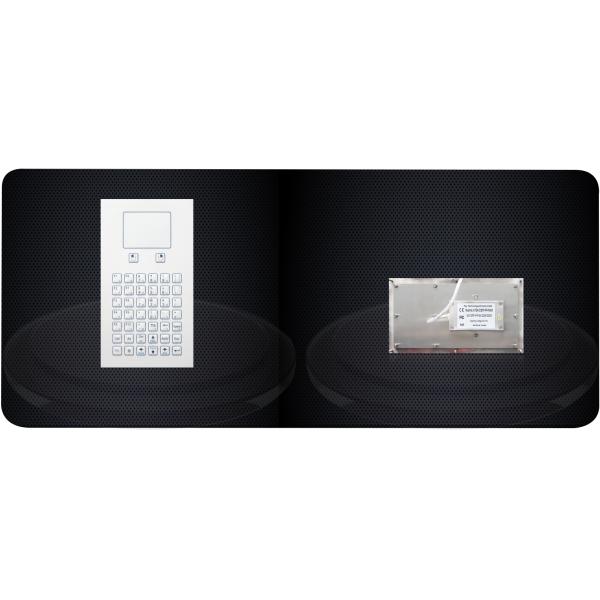

Actual Photos For Industrial Membrane Keyboard
44 Keys Industrial Membrane Keyboard IP65 Dynamic With Ruggedized Touchpad

Key Technology China Limited
44 Keys Industrial Membrane Keyboard IP65 Dynamic With Ruggedized Touchpad44 Keys Industrial Membrane Keyboard IP65 Dynamic With Ruggedized Touchpad
