Military Standard Wide Temperature Marine Keyboards With Integrated Touchpad
RUGGED MARINE KEYBOARD DESCRIPTION: 90 keys IP65 dynamic water proof vandal proof aluminum alloy ruggedized military standard wide temperature keyboard with durable polymer keys. The high quality ruggedized aluminum alloy top panel is processed by CNC. with 12 function keys F1, F2, ... F12, sealed and PCB with carbon-on-gold key switch technology with stroke 1.0mm with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium spray-paint on the aluminum alloy panel , one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, stainless steel back plate . Adjustable white backlight included . FN + Clean combination keys for easy cleaning without taking the keyboard away from PC and avoid mis-operation or mis-typing. It is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt amist etc. The length of wide temperature shield cable is optional. USB interface.
DIMENSIONS: 285.0mm x 179.7mm ( L XW )
| ELECTRICAL DATA | Supply Voltage: | +5V DC +/-5% |
| Current Rating: | 100mA for keyboard without backlight |
| Current Rating: | 300mA for keyboard with backlight on |
| EMC Standard: | EN 55032:2015, EN 55035:2017 |
| Lifespan: | > 5 years |
| Switch Contact Material: | Carbon-on-Gold key switch technology PCB |
| Interface: | PS2, USB available. |
| OS: | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
| ENVIRONMENTAL ADAPTABILITY | Operating temperature: | -40oC to +80oC |
| Storage temperature: | -45oC to +90oC |
| Operating RH: | 30-90% |
| Atmospheric pressure: | 60-106Kpa. |
| Saline mist: | 96 hours, IEC 60512-6 |
| Damp heat test at + 40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |
| RELIABILITY | Protection Level: | IP65 |
| Vandal resistant: | IK08 |
| Key Lifespan: | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
MILITARY KEYBOARD MAIN FEATURES
The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring on the keyboard.
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without taking keyboard away from PC, and avoid mis-operation or typing mistake.
Waterproof execution according to IP67 protection from top panel and other sides without including the bottom side, top stainless steel plate and sealing gasket with mounting holes or easy tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
Any keyboard layouts are available, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Polymer keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.

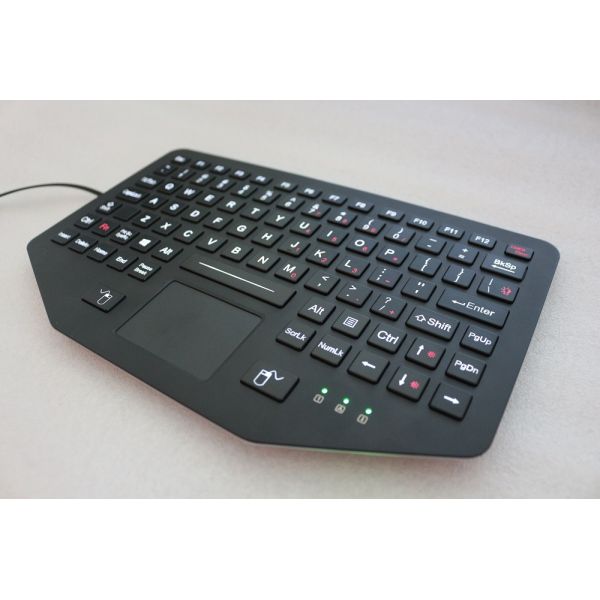

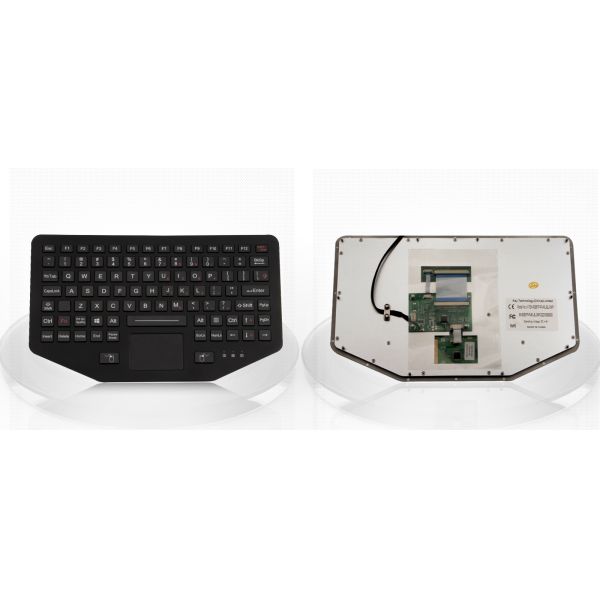

Backlight Marine Keyboard Actual Photos:
